Details

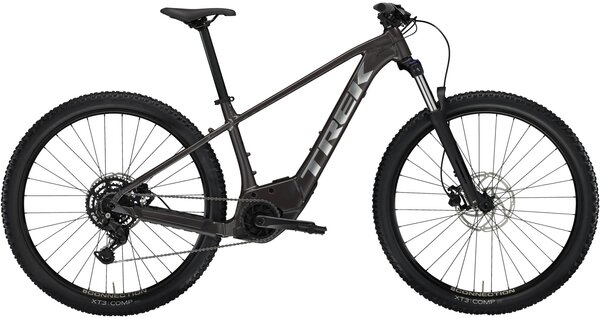

Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.
It's right for you if...
You want a boost of power on the trail without spending an arm and a leg. You love the trail to town capability of Marlin and want a ride that helps you ride a little faster or pedal farther.
The tech you get

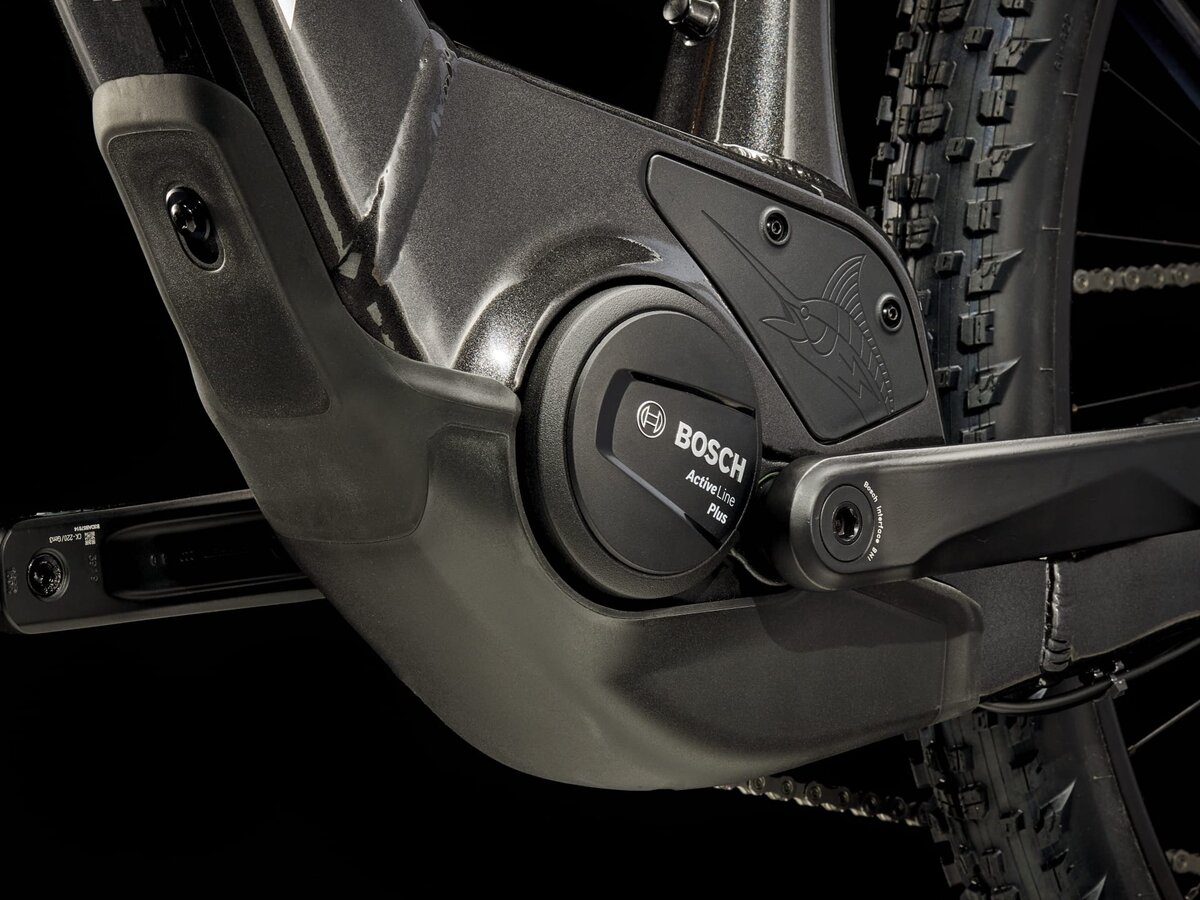

An Alpha Platinum Aluminum frame with real mountain bike geometry and a coil-sprung 120mm fork. A reliable Bosch Active Line Plus 50Nm drive system capable of assisting you to speeds of 20mph/25kph. A compact Purion 200 remote with built in display. Plus, hydraulic disc brakes and 9-speed Shimano CUES drivetrain that performs well, even under load.
The final word
Marlin+ is the go-to for riders looking to dip their toes into the electric mountain bike world. Its trail-savvy frame gives you confident control, and Bosch Active Line Plus motor offers enough power to take the burn out of long climbs.
Why you'll love it
- Its AUTO mode adaptive motor support recognizes speed reductions and adjusts assistance automatically
- The 120mm suspension keeps your ride feeling smooth through bumps, roots, and rough stuff
- Marlin+ is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes
- Trail-savvy geometry keeps handling easy and confident from singletrack to city streets
- Tons of rack and fender mounts let you customize your ride for the trail or taking on daily commutes
Frame size number | 13.5" | 14.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23.0" |
---|---|---|---|---|---|---|---|---|
Frame size letter | XXS | XS | S | M | ML | L | XL | XXL |
Wheel size | 26" | 27.5" | 27.5" | 29" | 29" | 29" | 29" | 29" |
A — Seat tube | 32 | 34 | 37 | 42 | 43.5 | 45 | 50 | 54 |
B — Seat tube angle | 74.0° | 73.8° | 73.8° | 73.4° | 73.4° | 73.4° | 73.4° | 73.4° |
Effective seat tube angle | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
C — Head tube length | 9 | 9 | 10 | 10.5 | 11 | 11.5 | 13.5 | 15 |
D — Head angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
E — Effective top tube | 52.1 | 55.1 | 57.9 | 61.5 | 63.1 | 64.7 | 67.8 | 70.7 |
F — Bottom bracket height | 30.2 | 31.3 | 31.3 | 30.8 | 30.8 | 30.8 | 30.8 | 30.8 |
G — Bottom bracket drop | 3.8 | 4.5 | 4.5 | 6 | 6 | 6 | 6 | 6 |
H — Chainstay length | 43.3 | 43.3 | 43.3 | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 |
I — Offset | 4 | 4.2 | 4.2 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 |
J — Trail | 10.4 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
K — Wheelbase | 106 | 109.2 | 112.1 | 116.3 | 118 | 119.7 | 123 | 126.1 |
L — Standover | 65 | 65.8 | 69.2 | 74.7 | 75.9 | 77.1 | 79.1 | 81.6 |
M — Frame reach | 36.5 | 39 | 41.5 | 44 | 45.5 | 47 | 49.5 | 52 |
N — Frame stack | 54.4 | 56.3 | 57.2 | 60.9 | 61.4 | 61.8 | 63.7 | 65.1 |
Size | Rider Height | Inseam |
---|---|---|
2XS | 135 - 145 cm | 64 - 68 cm |
4'5" - 4'9" | 25" - 27" | |
XS | 145 - 155 cm | 69 - 73 cm |
4'9" - 5'1" | 27" - 29" | |
S | 155 - 165 cm | 74 - 78 cm |
5'1" - 5'5" | 29" - 31" | |
M | 165 - 176 cm | 79 - 83 cm |
5'5" - 5'9" | 31" - 33" | |
M/L | 173 - 180 cm | 81 - 86 cm |
5'8" - 5'11" | 32" - 34" | |
L | 177 - 188 cm | 84 - 89 cm |
5'10" - 6'2" | 33" - 35" | |
XL | 188 - 195 cm | 89 - 91 cm |
6'2" - 6'5" | 35" - 36" | |
2XL | 195 - 203 cm | 91 - 97 cm |
6'5" - 6'8" | 36" - 38" |
Specs
Pedals | VP-536 nylon platform |
---|---|
Fork | Size: XS SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel Size: S , M , L , XL SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel |
Hubs | Front: Formula DC-20, alloy, 6-bolt, 100mm ThruSkew | Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
Stem | Size: XS Bontrager Comp, 31.8mm, 7 degree, 35mm length Size: S , M , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
Chain | Shimano LG500 |
Frame | Size: XS Alpha Platinum Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle Size: S , M , L , XL Alpha Platinum Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle |
Tires | Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40'' Size: M , L , XL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40'' |
Brakes | Tektro HD-M275 hydraulic disc |Tektro, centerlock, 203mm |
Saddle | Bontrager Verse P3, steel rails |
Spokes | 14g stainless steel |
Headset | Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom |
Crankset | FSA CK-220, 165mm length | FSA, 32T, steel |
Seatpost | Size: XS , S Bontrager alloy, 31.6mm, 12mm offset, 330mm length Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length Size: L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
Shifters | Shimano U4000, 9 speed |
Handlebars | Size: XS , S Bontrager alloy, 31.8mm, 15mm rise, 720mm width Size: M , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
Tape/Grips | Bontrager XR Endurance Comp, lock-on |
Rear Derailleur | Shimano CUES U4000 |
Cassette/Freewheel | Shimano LINKGLIDE LG300, 11-46, 9 speed |
Battery | Bosch CompactTube 400Wh |
Charger | Bosch standard 2A, 110V, smart system |
Computer | Bosch Purion 200 |
Motor | Bosch Active Line Plus, 50 Nm |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Dnister Black / X-Small / 27.5-inch | 745889469356 | 5294454 | TRE34905118K |
Dnister Black / Small / 27.5-inch | 745889469318 | 5294455 | TRE33899335K |
Dnister Black / Medium / 29-inch | 745889469073 | 5294456 | TRE3255781K |
Dnister Black / Large / 29-inch | 745889469097 | 5294457 | TRE32459214K |
Dnister Black / X-Large / 29-inch | 745889469134 | 5294458 | TRE33737329K |
Crimson / X-Small / 27.5-inch | 768682692127 | 5294459 | TRE29144899N |
Crimson / Small / 27.5-inch | 768682691960 | 5294460 | TRE28988900N |
Crimson / Medium / 29-inch | 768682692103 | 5294461 | TRE27456093N |
Crimson / Large / 29-inch | 768682692363 | 5294462 | TRE27396155N |
Crimson / X-Large / 29-inch | 768682692349 | 5294463 | TRE28486625N |
