Specialized Fuse Comp 29 - 2022

Specialized Fuse Comp 29
  • Color: Satin Smoke/Black
  • Color: Satin Olive Green/Sand
$2,099.00 - $2,799.00
$2,799.00
Color:
Size: Select size
Please select options Unavailable

Details

The Fuse Comp 29 punches way above its weight class thanks to a light-yet-burly M4 aluminum chassis, frame geometry that lends the bike both playfulness and capability, and parts that withstand a serious flogging.

- 130-millimeters of plush suspension courtesy of a RockShox Recon RL fork.
- Highlights include powerful SRAM Level TRL disc brakes and a TranzX dropper post.
- SRAM NX Eagle drivetrain gives you single-ring simplicity and gearing to spare.

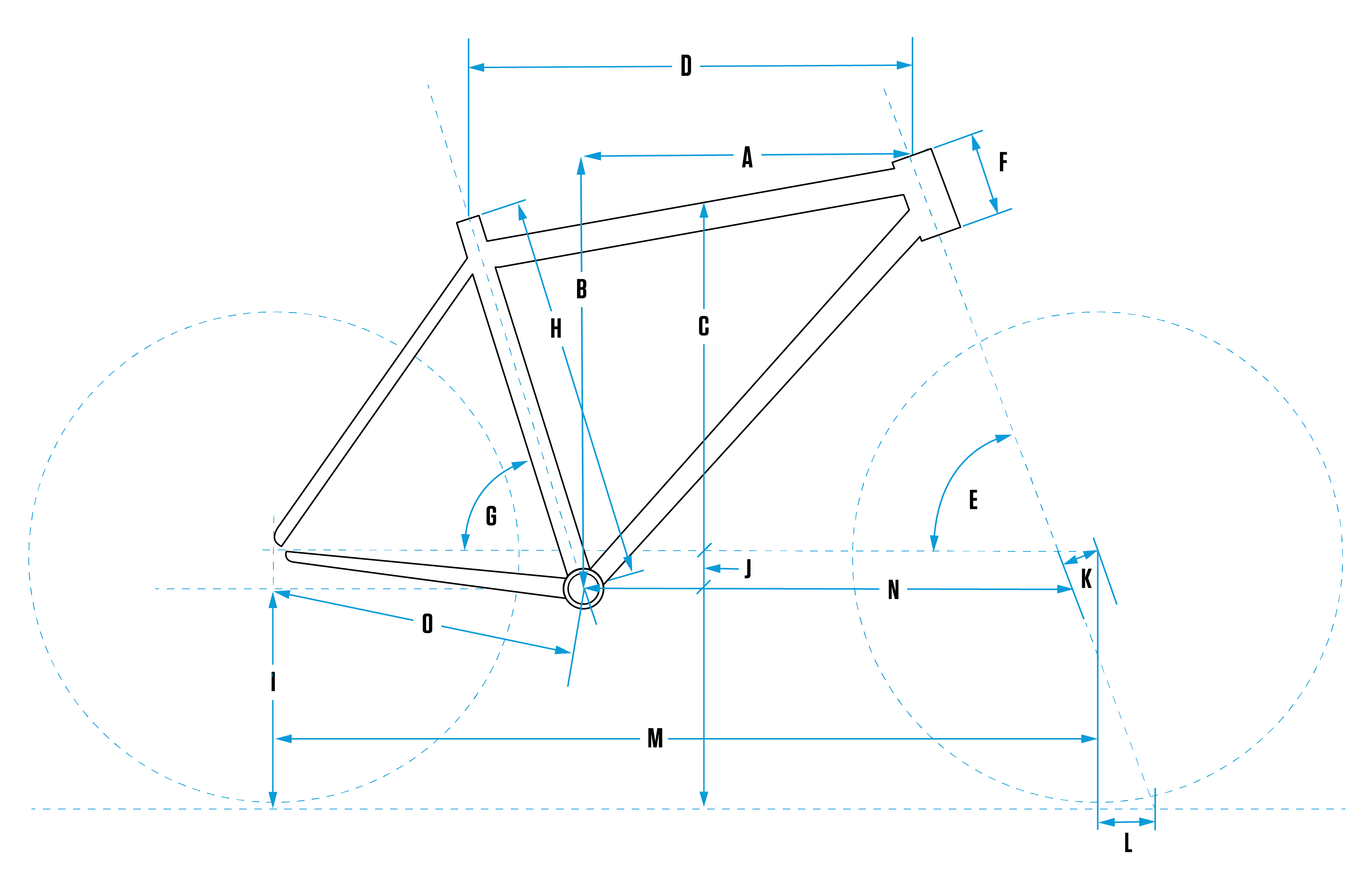

bike frame with labeled dimensions
Bike Sizes:
XSSMLXL
A. Reach 400mm 420mm 440mm 460mm 480mm
B. Stack 625mm 625mm 625mm 639mm 652mm
C. Standover 727mm 747mm 750mm 754mm 793mm
D. Effective Top Tube 579mm 599mm 619mm 643mm 667mm
E. Head Tube Angle 66.5° 66.5° 66.5° 66.5° 66.5°
F. Head Tube Length 95mm 95mm 95mm 110mm 125mm
G. Seat Tube Angle 74° 74° 74° 74° 74°
H. Seat Tube Length 340mm 375mm 410mm 455mm 505mm
I. Bottom Bracket Height 315mm 315mm 315mm 315mm 315mm
J. Bottom Bracket Drop 60mm 60mm 60mm 60mm 60mm
K. Fork Rake/Offset 46mm 46mm 46mm 46mm 46mm
L. Trail 113mm 113mm 113mm 113mm 113mm
M. Wheelbase 1122mm 1142mm 1162mm 1188mm 1214mm
N. Front to Center 698mm 718mm 738mm 764mm 790mm
Fork Length 540mm 540mm 540mm 540mm 540mm

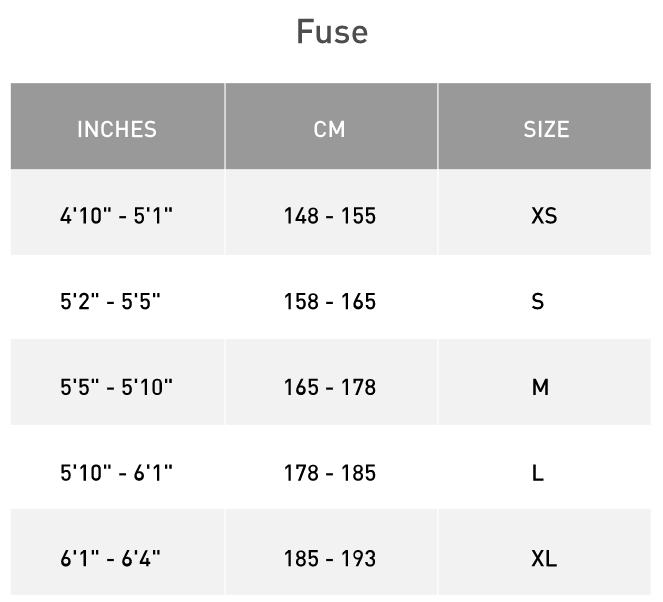

Sizing

Specs

Frame Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing
Fork RockShox Recon RL, air spring, 46mm offset, 130mm of travel
Rims Specialized Alloy, Tubeless Ready, 29mm internal width
Hubs Front: Alloy, sealed cartridge bearings, 15x110mm thru-axle
Rear: Alloy, sealed cartridge bearings, 12x148mm thru-axle
Spokes Stainless, 14g
Axles Front: 110 x 15mm
Rear: 148 x 12mm
Tires Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29x2.6"
Bottom Bracket SRAM DUB, BSA 73mm, threaded
Crankset SRAM, X1 Alloy Eagle, 12-speed
Chainrings 32T
Shifters SRAM NX Eagle, trigger, 12-speed
Rear Derailleur SRAM NX Eagle, 12-speed
Cassette/Freewheel SRAM NX Eagle PG-1230, 12-speed, 11-50t
Chain SRAM, SX Eagle, 12-speed
Brakes SRAM Level TRL, hydraulic disc: 4-piston front, 2-piston rear
Rotors Front: 200/180mm
Rear: 180/160mm
Brake Levers SRAM Level TRL
Handlebars Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
Tape/Grips Specialized Trail Grips
Stem Stout 3D-forged alloy, 31.8mm, 6-degree rise
Seatpost TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
Saddle Bridge Comp, Hollow Cr-mo rails, 155/143mm
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Satin Smoke/Black / X-Small 888818802241 96022-5201 SPE33141189S
Satin Smoke/Black / Small 888818801916 96022-5202 SPE32916332S
Satin Smoke/Black / Medium 888818801930 96022-5203 SPE32589973M
Satin Smoke/Black / Large 888818802296 96022-5204 SPE32468268L
Satin Smoke/Black / X-Large 888818802548 96022-5205 SPE33855117L
Satin Olive Green/Sand / X-Small 888818774968 96022-5001 SPE36273375S
Satin Olive Green/Sand / Small 888818774043 96022-5002 SPE35843687S
Satin Olive Green/Sand / Medium 888818774814 96022-5003 SPE35696303M
Satin Olive Green/Sand / Large 888818774364 96022-5004 SPE35642935L
Satin Olive Green/Sand / X-Large 888818774531 96022-5005 SPE36799060L
