Rocky Mountain Instinct Frameset - 2024
Details

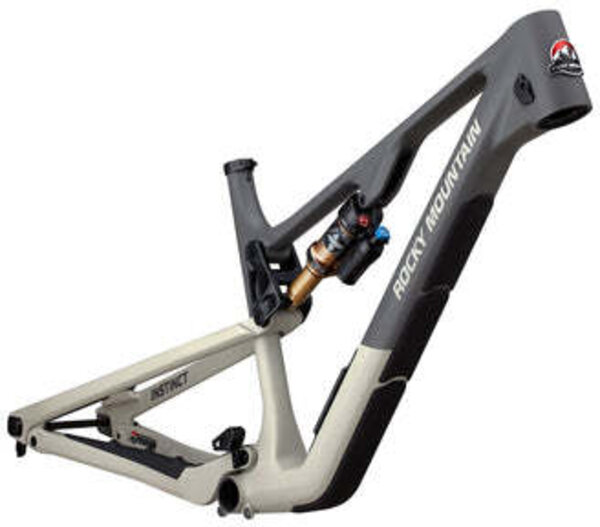

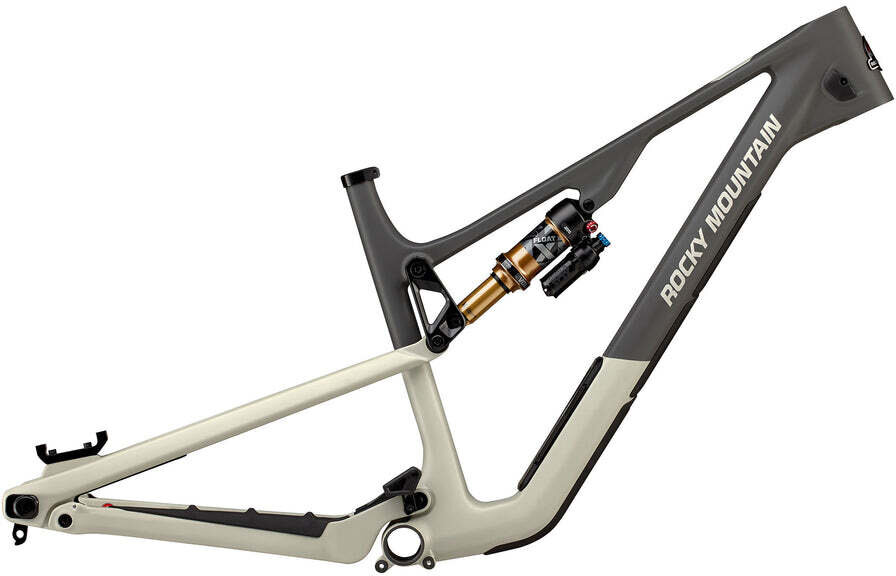

The Instinct Carbon is at home on technical trails, but still allows you to push the distance and crush the climbs. Our most versatile platform just got more adventure-ready with updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Meet the Instinct Carbon.
| Size | Metric | Imperial |
| XS | 147.5 - 157.5 cm | 4’7” - 52” |
| SM | 152.5 - 167 cm | 5’0” - 5’6” |
| MD | 162.5 - 177.5 cm | 5’4” - 5’10” |
| LG | 172.5 - 188 cm | 5’8” - 6’2” |
| XL | 183 - 198 cm | 6’0” - 6’6” |
Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.
The two-position axle allows the rider to choose a short or long rear-center length that suits their personal preferences.
The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.
Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real world field testing, and adjusts each tune for specific frame sizes.
The new PenaltyBox™ 2.0 downtube storage (carbon models only) includes generous capacity, custom tool wrap and our rock-solid hinged door system that doubles down as a water bottle mount and built-in concealed AirTag/Tile compartment.
Fine tune your ride with center, +/- 5mm offset options.
Pedals sold separately
Specs
| Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Headset | FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Rear Shock | Fox Float X Factory | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Smokin' in the Boys Room / Bad to the Bone / Small / 29" | 770416488821 | F0053SM92 | ROC37533710E |
| Smokin' in the Boys Room / Bad to the Bone / Medium / 29" | 770416488838 | F0053MD2 | ROC3783571E |
| Smokin' in the Boys Room / Bad to the Bone / Large / 29" | 770416488845 | F0053LG2 | ROC37365439E |
