Details

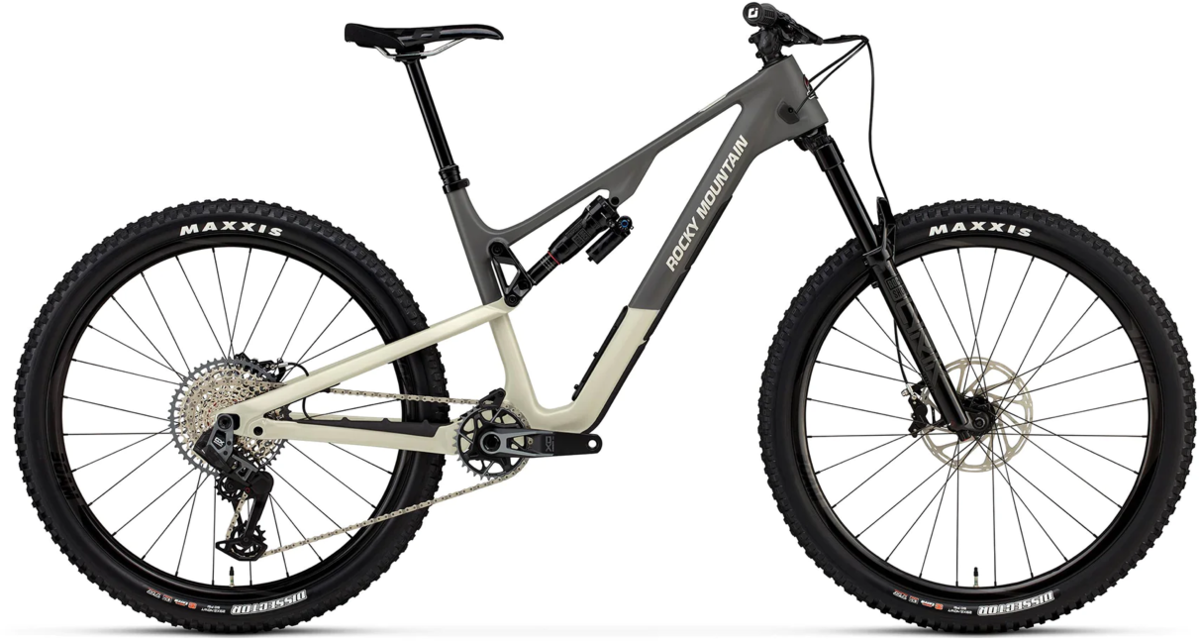

The Instinct Carbon is at home on technical trails, but still allows you to push the distance and crush the climbs. Our most versatile platform just got more adventure-ready with updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Meet the Instinct Carbon.

Sizing

Size	Metric	Imperial
XS	147.5 - 157.5 cm	4’7” - 52”
SM	152.5 - 167 cm	5’0” - 5’6”
MD	162.5 - 177.5 cm	5’4” - 5’10”
LG	172.5 - 188 cm	5’8” - 6’2”
XL	183 - 198 cm	6’0” - 6’6”

SMOOTHWALL™ Carbon

Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.

Two-position axle

The two-position axle allows the rider to choose a short or long rear-center length that suits their personal preferences.

RIDE-4™ adjustment system

The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.

Size Specific Tune

Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real world field testing, and adjusts each tune for specific frame sizes.

PenaltyBox™ 2.0

The new PenaltyBox™ 2.0 downtube storage (carbon models only) includes generous capacity, custom tool wrap and our rock-solid hinged door system that doubles down as a water bottle mount and built-in concealed AirTag/Tile compartment.

Reach adjust headsets

Fine tune your ride with center, +/- 5mm offset options.

Pedals sold separately

Specs

Frame	SMOOTHWALL™ Carbon \| Full Sealed Cartridge Bearings \| Press Fit BB \| Internal Cable Routing \| 2-Bolt ISCG05 Tabs \| RIDE-4™ Adjustable Geometry \| 2 Position Axle \| 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork	RockShox Lyrik Select+ 150mm \| Charger RC3 Damper \| 27.5 = 37mm Offset \| 29 = 42mm Offset
Headset	FSA Orbit NO.85 Reach Adjust\| 0mm Cups Installed \| +/- 5mm Cups Included \| Durable Sealed Stainless 36°x45° Bearings \| 30.2mm x 41mm x 7.1mm Upper \| 40mm x 51.8mm x 7.5mm Lower \| 1.5" Crown Race
Rear Shock	RockShox Super Deluxe Ultimate \| Sealed Bearing Eyelet \| 20x8mm F Hardware \| XS - SM = 190x45mm \| MD - LG - XL = 210x52.5mm \| Size-Specific tune in FAQ
Rims/Wheels	Rocky Mountain 30AM Carbon / Tubeless Ready - Tape / Valves Incl
Hubs	F: Rocky Mountain SL Sealed Boost 15mm R: DT Swiss 370 Boost 148mm \| 18T Star-Ratchet
Spokes	DT Swiss Competition 2.0/1.8/2.0
Tires	F: Maxxis Dissector 2.4 WT EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT EXO Tubeless Ready
Crankset	Sram X0 Transmission Alloy \| 32T \| DUB Spindle \| Crankarm Length: XS -SM = 165mm \| MD - XL = 170mm
Bottom Bracket	Sram BB92 DUB Wide
Chain	Sram GX Eagle T-Type
Rear Derailleur	Sram X01 Eagle AXS Wireless
Cassette/Rear Cogs	Sram XG-1275 10-52T
Shifters	Sram AXS Pod Wireless Controller
Handlebars	Rocky Mountain AM Carbon 780mm
Tape/Grips	ODI Elite Pro Lock On
Stem	Rocky Mountain 35 AM \| 5° Rise \| All Sizes = 40mm
Brakes	Sram G2 RSC 4 Piston \| Resin Pads
Pedals	Not included
Saddle	WTB Volt 142
Seat Post	OneUp Dropper 30.9mm \| XS = 120mm \| SM = 150mm \| MD = 180mm \| LG - XL = 210mm

* Subject to change without notice.

Part Numbers

Option	UPC	MPN	Store SKU
Smokin' in the Boys Room / Bad to the Bone / X-Small / 27.5"	770416533583	B0389XS2	ROC35307476E
Smokin' in the Boys Room / Bad to the Bone / Small / 27.5"	770416533460	B0389SM72	INS26777484E
Smokin' in the Boys Room / Bad to the Bone / Small / 29"	770416533507	B0389SM92	ROC35953243E
Smokin' in the Boys Room / Bad to the Bone / Medium / 29"	770416533422	B0389MD2	INS26508934E
Smokin' in the Boys Room / Bad to the Bone / Large / 29"	770416533385	B0389LG2	INS2612137E
Smokin' in the Boys Room / Bad to the Bone / X-Large / 29"	770416533545	B0389XL2	ROC35273699E
